KF clamps

Name: KF clamps
Brand: AEROCURE VACUUM TECHNOLOGIES
Price: 100.0 INR
Availability: InStock

Price 100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

KF clamps Specification

Equipment Type
KF clamps

Processing Type
Standard

Condition
New

Technology
Other

Power Mode
Other

WorkingSpeed
1000 to 10E-8 mbar

Application
to join standardized vacuum flanges, creating leak-tight seals in low to high vacuum environments

Warranty
1 year

KF clamps Trade Information

Minimum Order Quantity
1 Number

Delivery Time
1 Days

About KF clamps

KF clamp centering rings and O-rings are quick-assembly vacuum hardware components used to create leak-tight seals across ISO-KF (NW) flanged systems. They consist of a rigid metal or SS outer ring, an elastomer O-ring seal, and an external quick-action clamp

Components and Materials

Centering Ring (Outer Ring): Made of aluminum or 304 stainless steel to hold the assembly centered between two matching flange faces.

O-Ring Seal: Elastomer ring fitted onto the inner or outer diameter of the metal ring; common materials include Viton (FKM) for high temperatures (150C to 200C) and Buna-N (NBR) for general use up to 80C.

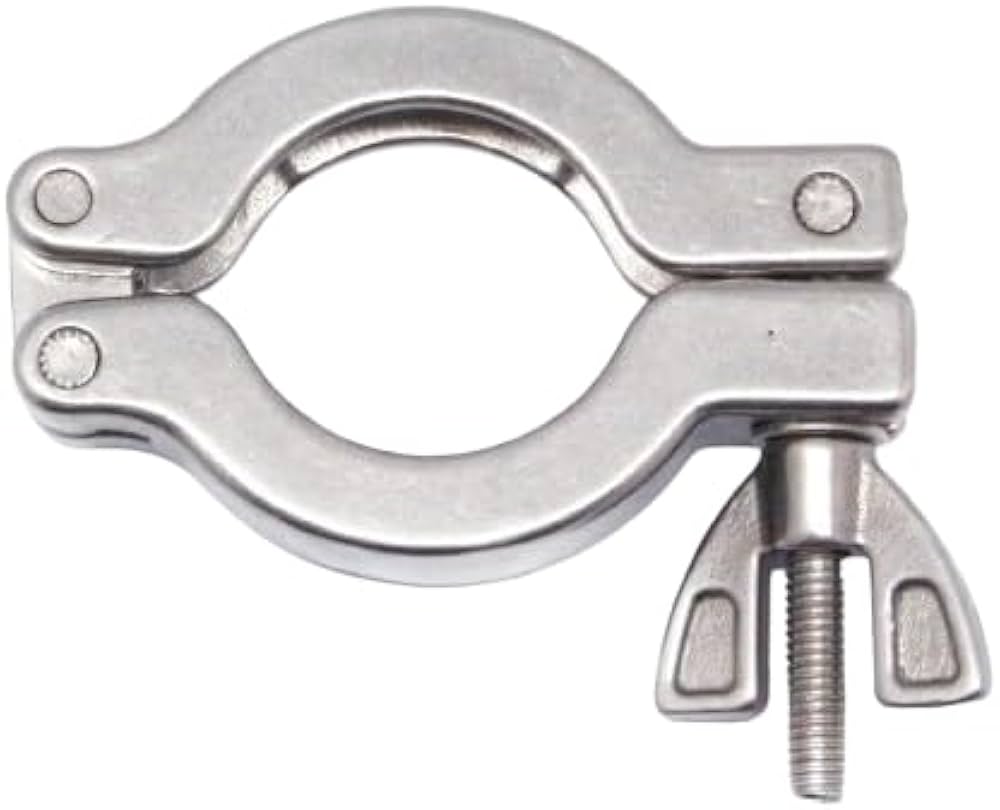

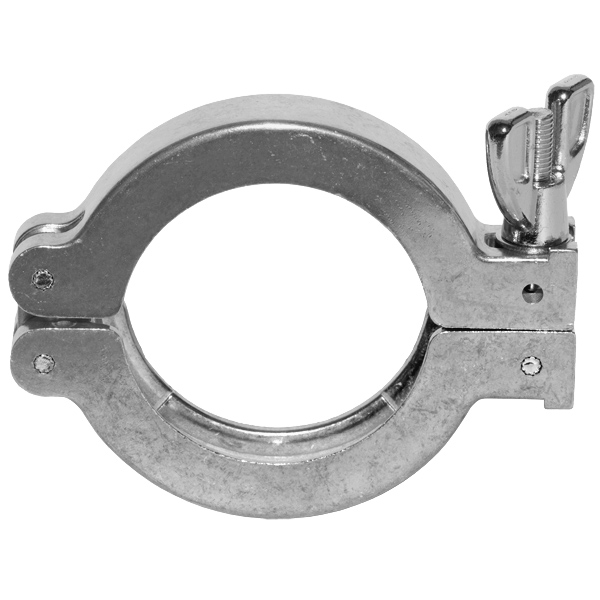

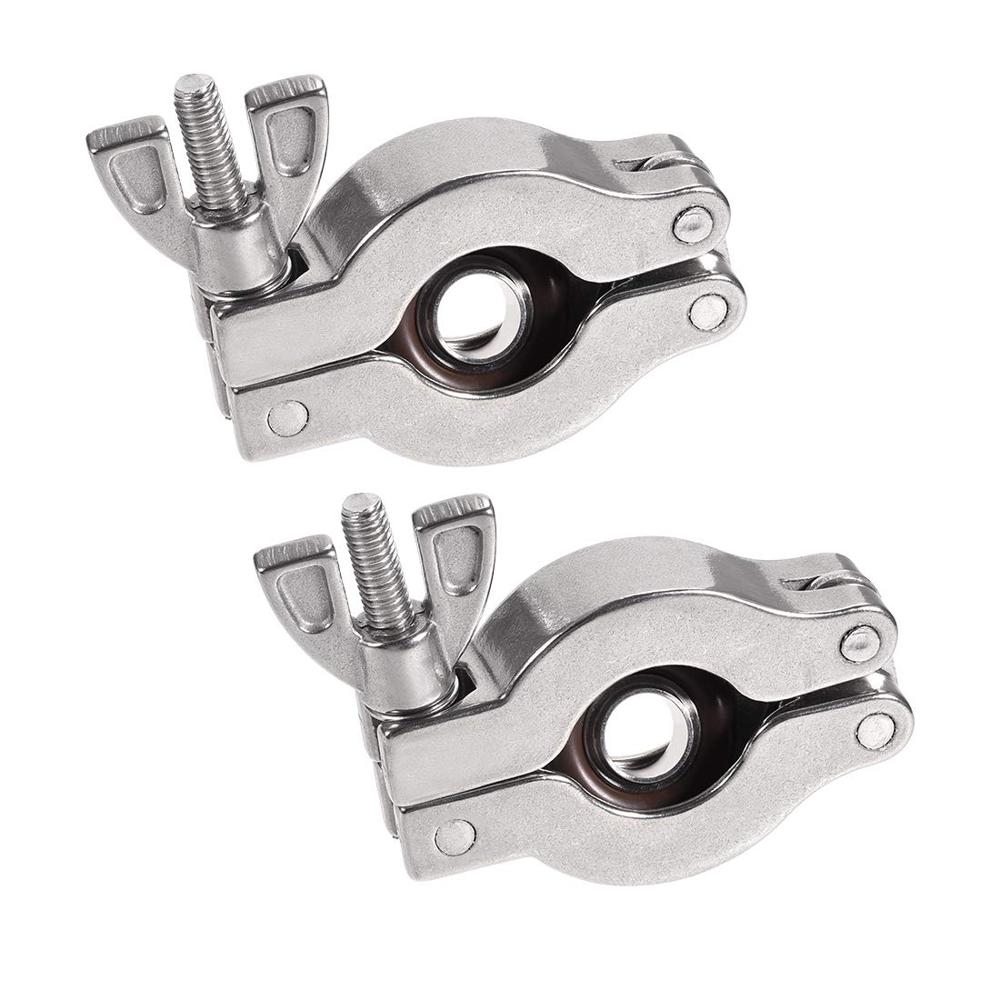

KF Clamp: Usually an aluminum or stainless steel wing-nut hinge clamp or a fast-action aluminum chain clamp designed to wedge evenly around 15-degree tapered flange edges when tightened

Specifications and Performance

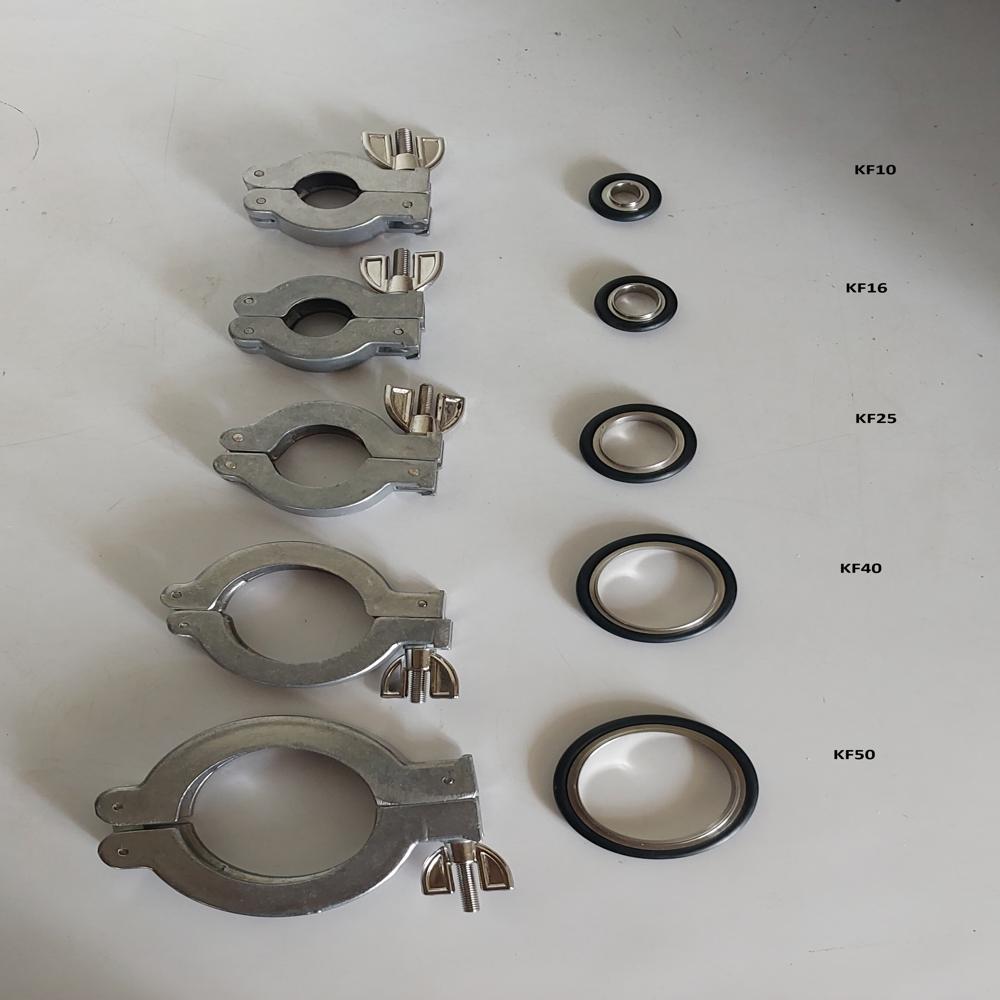

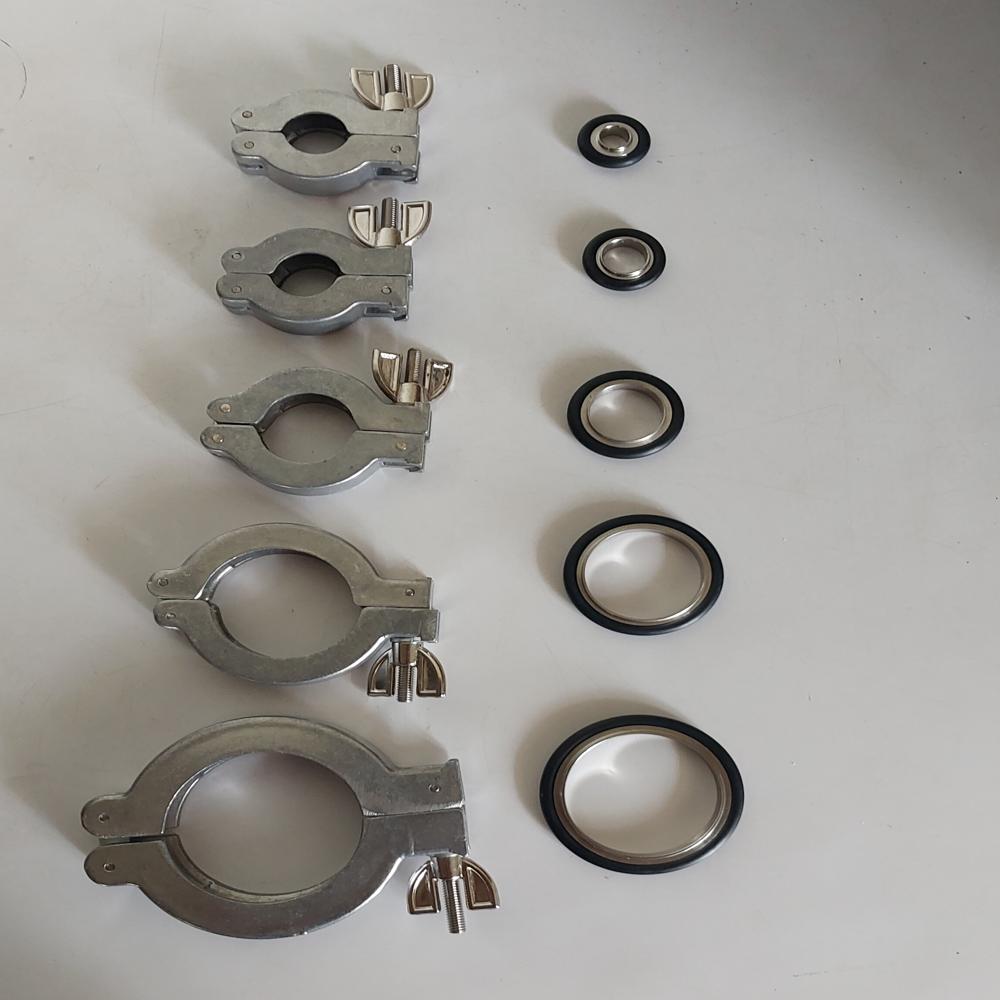

Sizes: Standard nominal diameters range from KF10, KF16, KF25, KF40, up to KF50 (NW10 through NW50).
Vacuum Range: Operates effectively from roughing down to medium and high vacuum levels (typically up to 10 Torr).
Operation: Installed by placing the centering ring with its O-ring between two clean flange lips, then tightening the wing-nut clamp by hand to compress the elastomer uniformly without tools
