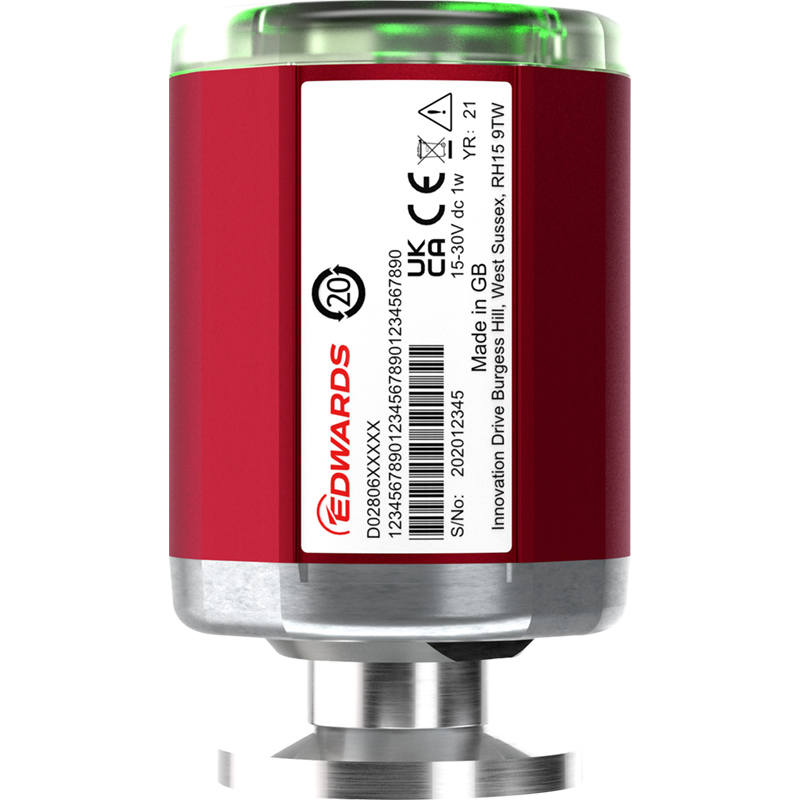

Send InquiryEdwards Pirani APG200
Price 43997.0 INR/ Piece
MOQ : 1 Piece
Edwards Pirani APG200 Specification
- Equipment Type
- Active Pirani Vacuum Gauge
- Material
- Anodized Aluminum, High-grade Plastic, Stainless Steel Connectors
- Processing Type
- Sensor/Detector
- Condition
- New
- Technology
- Pirani Thermal Conductivity Sensor
- Dimension (L*W*H)
- Approx. 110mm x 45mm x 45mm
- Power Mode
- External DC Power Supply
- Voltage
- 15 to 30 V DC
- Power Consumption
- 2.25 W
- Pressure Output
- 1000 mbar to 1x104 mbar
- Application
- Vacuum Measurement, Semiconductor, Research Laboratories, Industrial Process Control
- Coating Type
- Anodized Surface Finish
- Accessories
- Standard Communication Cables, Mounting Instructions
- Output Signal
- Logarithmic or Linear Voltage (Selectable)
- Protection Class
- IP40
- Connector Type
- RJ45 / D-Sub 9-pin
- Temperature Range
- Operating: 0C to +50C, Storage: -20C to +70C
- Communication Interface
- Analog Output, Optional RS232 Digital Interface
- Response Time
- 100 ms
- Mounting Orientation
- Any Orientation Allowed
- Materials Exposed to Vacuum
- Stainless Steel, Glass, Platinum
- Display
- LED Status Indicator with 360 Visibility
- Weight
- Approx. 140g
Edwards Pirani APG200 Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 1 Days
About Edwards Pirani APG200
Edwards new APG200 series high performance compact Pirani Gauge is the perfect vacuum measurement solution across a spectrum of applications due to its compact size, LED light ring, integrated set points and flexibility of connections/outputs.
With a range of upgrades and feature enhancements, the APG200 is suitable for all vacuum markets, from Analytical instruments who can take advantage of the reduced size and flexible outputs, to Semiconductor for whom the new interfaces and light rings enable better maintenance of systems, to Research and development for whom the local pressure indication helps to monitor experiments away from the main interfaces.
