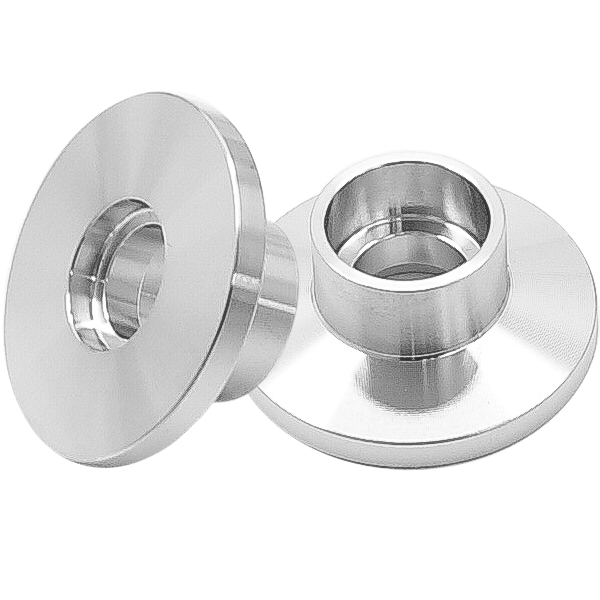

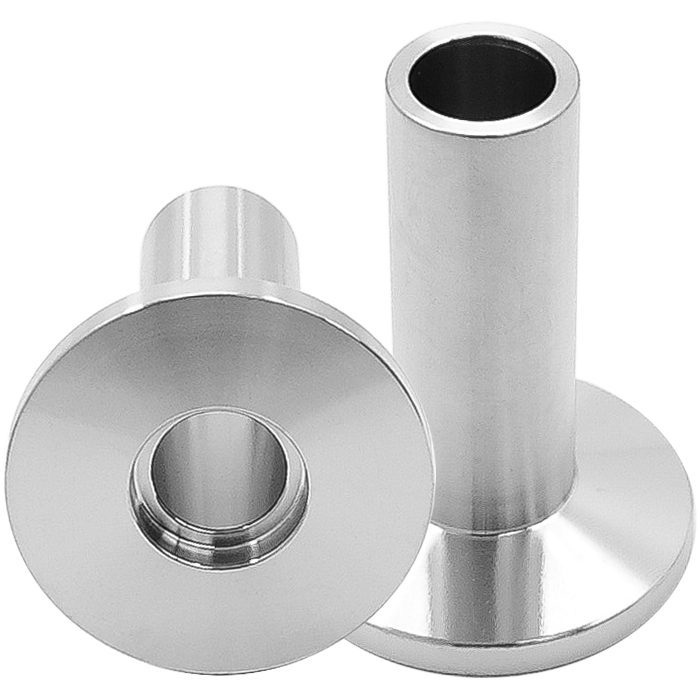

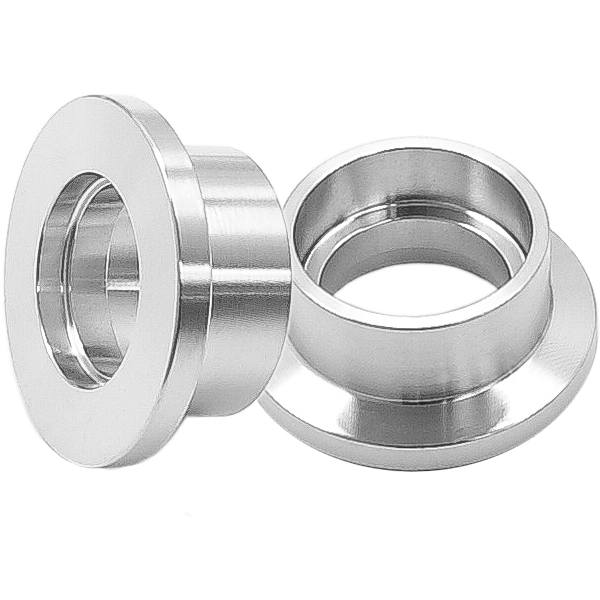

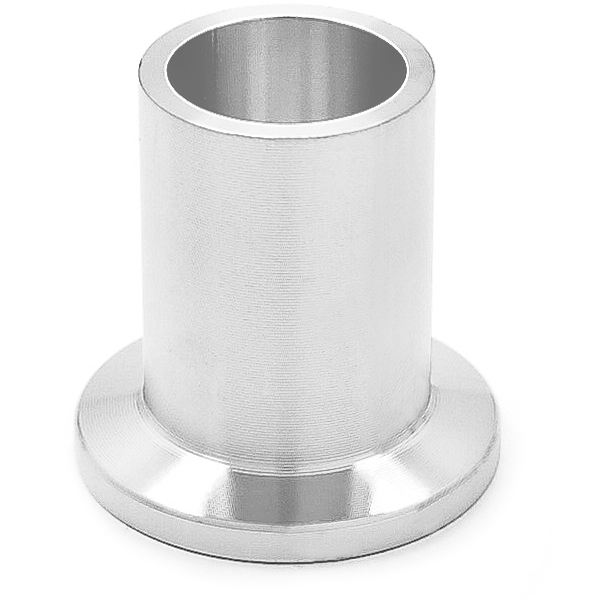

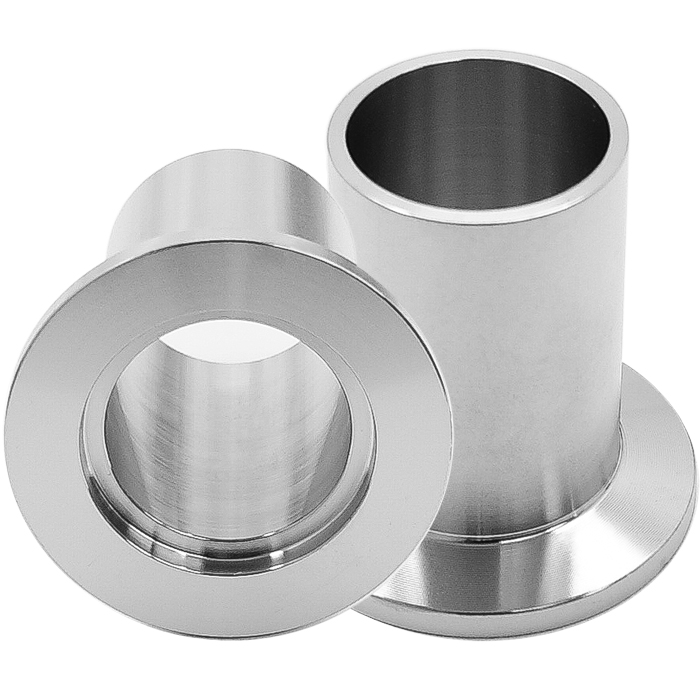

Send InquiryKF flanges
Price 150.0 INR/ Piece
MOQ : 1 Piece
KF flanges Specification
- Usage
- primarily in vacuum systems to connect, disconnect, and reconfigure piping, chambers, and pumps without specialized
- Material
- Steel
- Product Type
- SS
- Weight
- 80 GSM (gm/2)
- Color
- polished
- Length
- 25 Millimeter (mm)
- Width
- 20 Millimeter (mm)
- Application
- rimarily in vacuum systems to connect, disconnect, and reconfigure piping, chambers, and pumps without specialized
KF flanges Trade Information
- Minimum Order Quantity
- 1 Piece
- Delivery Time
- 1 Hours
About KF flanges
KF flanges, also known as NW or Quick Flanges (QF), are quick-release vacuum fittings used in high-vacuum systems. They consist of two identical flanged tube ends, a metal centering ring with an elastomeric O-ring, and a fast-acting aluminum clamp tightened with a wingnuDesign and Components
- Flange Body: Made from 304 or 316L stainless steel, or aluminum, featuring a 15-degree outer angle (chamfer) designed to match the clamp jaws.
- Centering Ring: A metal ring (often aluminum or stainless steel) that holds the rubber O-ring in place and aligns the two pipe ends.
- O-Ring: An elastomeric seal made of Viton, NBR (Buna-N), or silicone that gets compressed between the mating flange faces.
- Quick-Release Clamp: A hinged circular clamp operated by a hand-tightened wingnut that applies uniform pressure without requiring tools
Specifications and Performance
- Standard Sizes: Designated by nominal inner diameter (NW/DN sizes like KF10, KF16, KF25, KF40, and KF50).
- Vacuum Range: Effective down to 10 mbar or 10 mbar (high vacuum).
- Temperature Limits: Typically up to 150C200C for short durations using Viton seals, and around 80C for standard NBR
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Vacuum Products Category

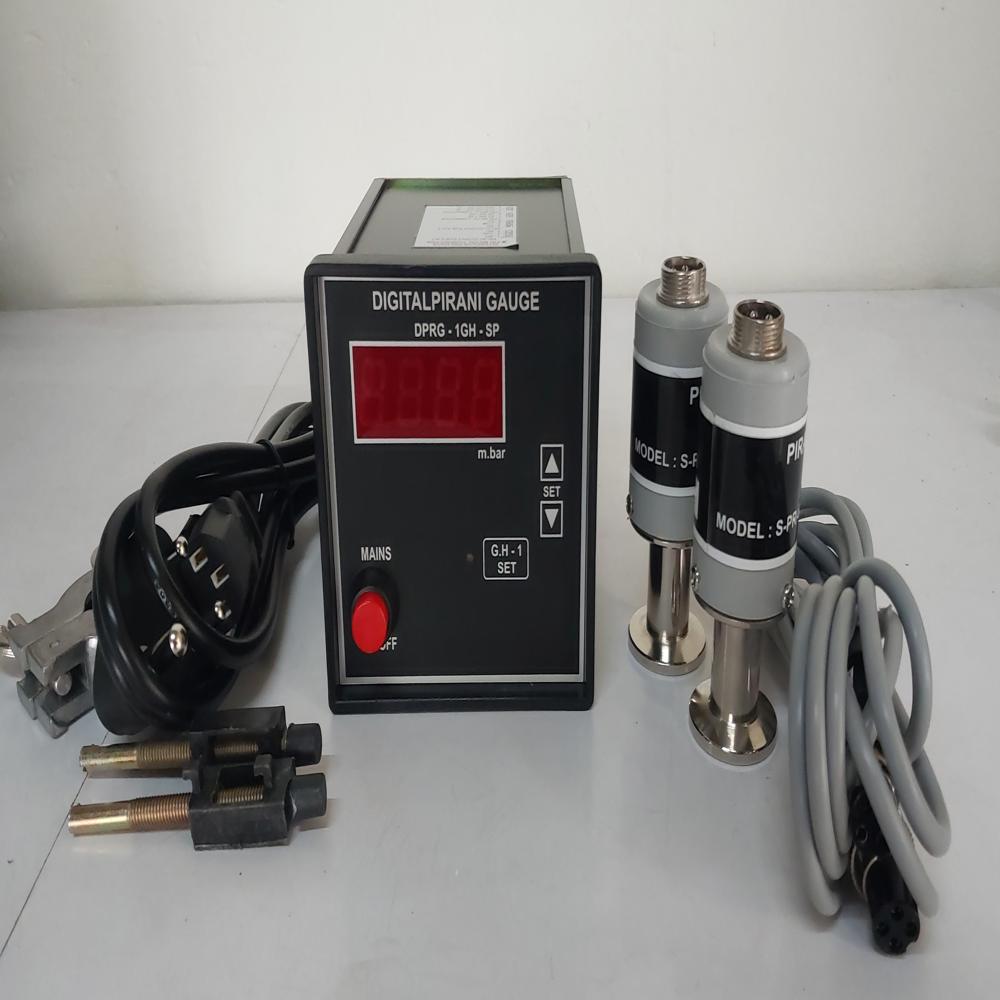

Digital Pirani Gauge
